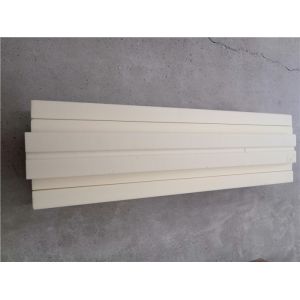

Closed Cell Structure High Density Polyisocyanurate Insulation For Petrochemical Plant

Name: Closed Cell Structure High Density Polyisocyanurate Insulation For Petrochemical Plant
Brand: Kaff Rees
Price: 1 USD

Place of Origin : Changzhou, Jiangsu,China

Brand Name : Kaff Rees

MOQ : 20 Cubic Meters

Price : Negotiable

Packaging Details : Carton packaging/Wooden case packaging/according to the requirements

Payment Terms : EXW/FOB/CIF

Certification : SGS

Delivery Time : Negotiable

Supply Ability : According to products

Name : High Density Polyisocyanurate Insulation

Feature : Low water absorption

Application : Liquefied gas plant

Closed Cell Ratio : ≥95%

Service Temp. : -196～+120℃

Packing : Wooden case

Contact Now

HDPIR is a kind of foaming polymer, with the features of plastic, rubber and cork. The raw materials are isocyanate, polyether, foaming agent, catalyst, flame retardant, etc. After high speed stirring, materials react and foam to cellular structure product, composed of millions of tiny and uniform sealed cells. It provide benefits of high density, low thermal conductivity, low water absorption. The performance is better than timber.

Technical Properties

Property	Unit	160K	224K	320K	400K	500K	550K
Density	kg/m3	160	224	320	450	500	550
Thermal Conductivity (+20℃)	W/(m·K)	≤0.035	≤0.042	≤0.050	≤0.060	≤0.075	≤0.085
Water Absorption	%	≤2.0	≤2.0	≤2.0	≤1.5	≤1.5	≤1.5
Compressive Strength	MPa	≥2.0	≥3.5	≥5	≥7	≥12	≥18
Closed Cell Ratio	%	≥95
Service Temp.	℃	-196~+120

Application

It is mainly used as cold insulation material for cold insulation pipe support system, and used for bearing and heat insulation of pipes and equipment in petrochemical plant, liquefied gas plant, refrigeration warehouse and central air conditioning system.

Packing and Storage

1. Store in a dry, lightproof, shady, and ventilated place, keep away from heat source and protect from sun exposure.

2. Will be fitted together with pipe supports in workshop. Finished product shall be wrapped by anti-ultraviolet polythene film, then packed in wooden case.

Production Flow

Closed Cell Structure High Density Polyisocyanurate Insulation For Petrochemical Plant
