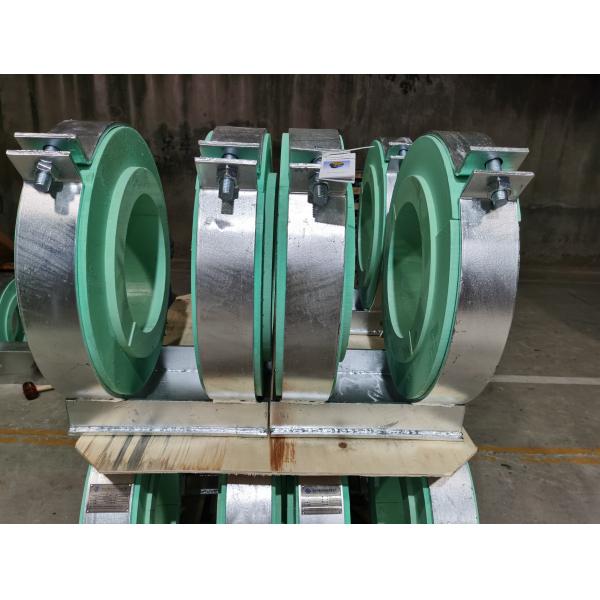

160K Double Clamps Sliding Pipe Support Industrial Pipe Hangers With Two Vertical Plates

  • 1
  • 2

Brand Name : Kaff Rees

Certification : SGS

Place of Origin : Changzhou, Jiangsu,China

MOQ : 20 Sets

Price : Negotiable

Payment Terms : EXW/FOB/CIF

Supply Ability : According to products

Delivery Time : Negotiable

Packaging Details : Carton packaging/Wooden case packaging/according to the requirements

name : HDPIR pipe support with two vertical plates

DENSITY : 160-550 K

COLOR : White/red/yellow/green

SERVICE TEMP. : -196～+120℃

THERMAL CONDUCTIVITY (+20℃) : ≤0.035-≤0.085 W/(m·K)

THERMAL CONDUCTIVITY (-196℃) : ≤0.0232 W/(m·K)

COMPRESSIVE STRENGTH : 2-14 MPa

CLOSED CELL RATIO : ≥95%

Contact Now

The double-clamp sliding pipe support is mainly used for laying and connecting the chemical energy pipeline. It is specially installed on the support seat under the cooling pipe and then the cooling block is clamped with double bolt tube.

Since the cooling capacity of the cooling pipe may be transmitted to the structural beam through the support, the cooling block is added to prevent the cooling capacity from spreading and generate a cold bridge, so as to play the role of heat insulation, cold insulation, vibration reduction and heat expansion buffer.

The raw material of the cooling block is PIR. Basic technical parameters are as below:

Inner Diameter (mm) 26.7,33.4,48.3,60.3,88.9,114.3,168.3,219.1,273,323.9,355,406.4,457.2,508,609.6
Thickness(mm) 30,40,50,60,70,80(40+40),90(40+50),100(50+50),120(60+60),150(70+80),180(60+60+60),200(60+70+70)
Length(mm) 100,150,200,250,300,350,400,450,500

The arc of the cooling block can be selected from 45 degrees, 60 degrees, 90 degrees, 120 degrees, 180 degrees, etc., and can also be made according to customer requirements.
